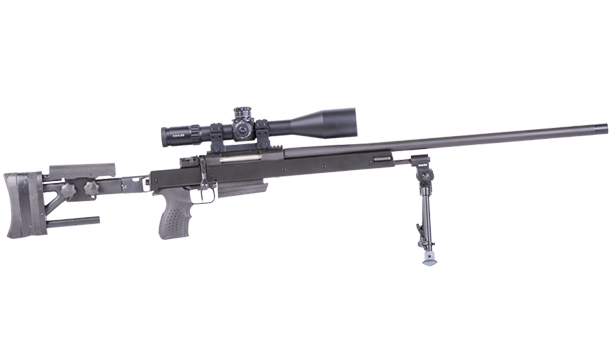

Sniper rifle M07 AS.jpg


Sniper rifle M07 AS is designed on the basis of famous Mauser M98 action.
Heavy barrel is made of chrome-vanadium steel, by cold forging, which guarantees exceptional precision, accuracy and long service life.
The action receiver is of polygonal shape, with built-in Picatinny rail, which enables the assembly of optical devices.
Trigger mechanism with single trigger can be finely adjusted. Mechanical safety has three positions: safe, fire and secure position, when it is possible to unlock the action, but it is not possible to fire.
Thread on the muzzle enables the assembly of accessories (gas or masking), and it is protected by a threaded ring.
Fixed stock is made of polymer. The height of the cheek pad can be adjusted and the length of the stock is changed by changing the number of inserts.This provides safe and comfortable position of the shooter during firing.
Sniper rifle with the same characteristics, but with folding stock is M07 AF.

Complete set:

  • Sniper rifle M07 AS
  • Optical sight
  • Spare magazine
  • Sling
  • Cleaning kit
  • Handling and maintenance manuals
Optionally, at customer’s request, the set can include:
  • Bipod

Technical characteristic

Caliber (mm) 7,62×51 7,62x54R
Twist rate
(mm)
254 240
Number of grooves 6 4
Magazine capacity (rounds) 5 5
Barrel length (mm) 650 650
Total length (mm) 1,182 1,182
Weight* (kg) 6.27 6.27
Magazine weight (kg) 0.11 0.11
Maximum efective range
(m)
1,000 1,000

*weight of the rifle with empty magazine and optical sigh, without bipod
